In industrial environments where accuracy and stability are critical, the RTD Temperature Sensor is the preferred choice. Unlike other sensors, a Resistance Temperature Detector operates on the predictable relationship between metal and electrical resistance. At Nuicon, we manufacture high-performance RTD Temperature Sensor units designed for linear, repeatable, and drift-free monitoring.
Every RTD Temperature Sensor is built in-house with rigorous quality control.
We provide NABL Calibration certificates to ensure full audit compliance.

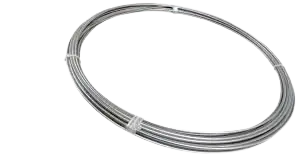

Our Mineral Insulated RTD probes are vibration-resistant and highly flexible.
Nuicon manufactures a high-performance range of application-specific RTD Temperature Sensor units designed for precision and durability. These specialized probes are engineered to handle unique mounting constraints and harsh industrial conditions while maintaining long-term stability.
A slim, straight-probe sensor designed for high-sensitivity readings in space-restricted environments.
Laboratory equipment, small-diameter pipelines, and air-stream sensing.
High-purity Pt100 Sensor or Pt1000 Sensor elements with rapid thermal response.

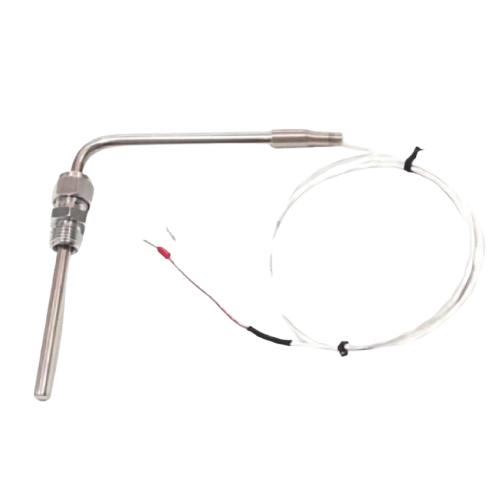

Features a precision right-angle bend to allow for installation in areas with limited overhead clearance.
Tank side-walls, complex machinery housings, and tight enclosures.
Robust right-angle construction and vibration-resistant SS316 sheath.
Designed with a specialized tip to monitor the temperature of flat or curved surfaces via direct contact.
Motor casings, bearing plates, and heat sink monitoring.
Spring-loaded or fixed-pin designs for optimal surface contact accuracy.
A heavy-duty, moisture-sealed sensor built to withstand extreme pressure and steam sterilization cycles.
Pharmaceutical autoclaves, medical sterilizers, and food processing.
High-pressure sealing, Teflon Coated lead wires, and Class AA precision.
Contains two independent sensing elements within a single probe for redundant monitoring or dual-system output.
Critical safety systems and simultaneous control and recording.
Dual 3-wire RTD,4-wire RTD, and 2-wire RTD configurations with a rugged, moisture-proof transition joint.
Features integrated industrial connectors for rapid sensor removal and replacement without re-wiring.
Portable testing rigs and machinery requiring frequent maintenance.
Durable plug-and-socket design and reliable signal transmission.

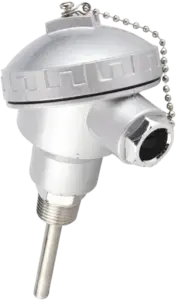

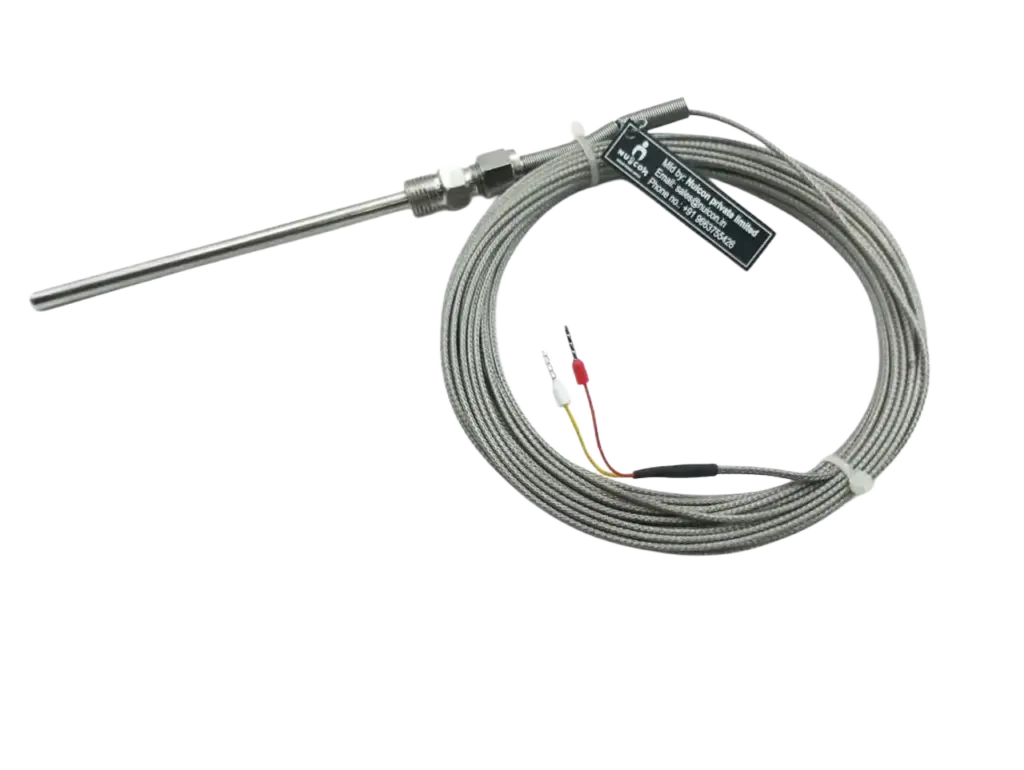

Equipped with fixed process threads for direct, leak-proof installation into pressurized systems.
Liquid pipelines, hydraulic systems, and pressurized vessels.air conditioning, refrigeration systems, heaters, furnaces, and general apparatus construction
NPT or BSP threaded mounting and high-pressure corrosion resistance.
Element Type: Pt100, Pt500, Pt1000 (Platinum)
Accuracy Class: Class A, Class B, Class AA
Temperature Range: -200°C to +600°C (Standard)
Wiring Options: 2-Wire, 3-Wire, or 4-Wire Configurations
Sheath Material: SS316, SS310, or Teflon Coated

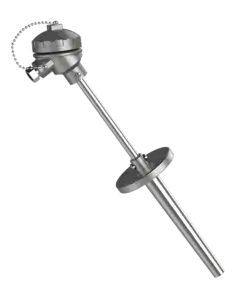

Protection: Flameproof Connection Head or Weatherproof Design
Designed for accurate and long-term temperature monitoring.
Class A and Class AA precision for minimal measurement errors.
Available in 3-wire and 4-wire RTD options for different applications.
The Pt100 Sensor is the industrial standard, while the Pt1000 Sensor is ideal for battery-operated devices due to its higher resistance.
Choose an RTD Temperature Sensor for high accuracy below 600°C. For temperatures above 1000°C, a Thermocouple is required.
A 3-wire RTD uses a third wire to cancel out cable resistance, ensuring accurate readings even with long lead wires.
Yes, our Mineral Insulated RTD models are specifically designed to withstand high-vibration industrial applications without failing.
Response times vary based on the sheath diameter and construction, but we offer thin-film elements for applications requiring rapid thermal detection.
Yes, our sensors integrate seamlessly with standard industrial PLCs, controllers, and Building Automation systems.
