K2 Series

Omniport 30 meter

K2 series is economic type PLC, not expandable, enhancing performance and reducing cost comparing with K5 series.

Omniport 30 with LOGPROBE20

Omniport 30 with LOGPROBE31

Omniport 30 with available probes

Omniport 30 multifunctional hand-held metre SET

Main Features

Multiple Functions

Industrial Applications

Main Features

USB port for program download, online debugging.
DIO multiplexing, flexible for various applications.
The hybrid output and analog quantity of integrated transistor
relay are closer to the functions required by users, and have high cost performance;
Keep standard series of multiple communication ports, multi-channel high-speed channel, RTC, etc., reduce price without reducing material

Multiple Functions

Industrial Applications

K2 Series: Type CPU Module
Product Number	Description
K204ET-16DT	DC20.4-28.8V power supply, DI 8DC24V, DO 6Transistor, AI 1IV, AO 1IV, USB2.0 program interface, 1Ethernet, 2RS485, no expansion.

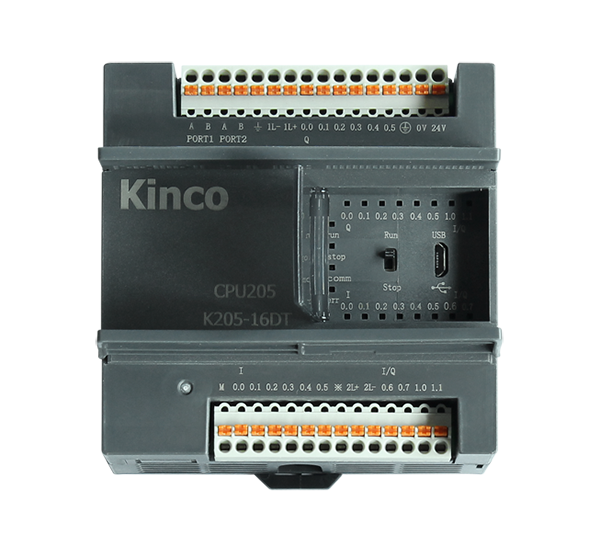

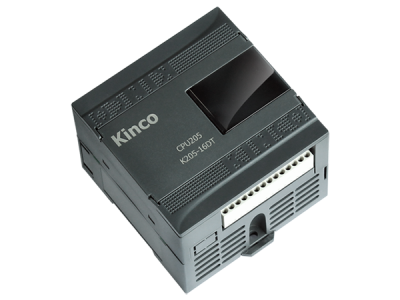

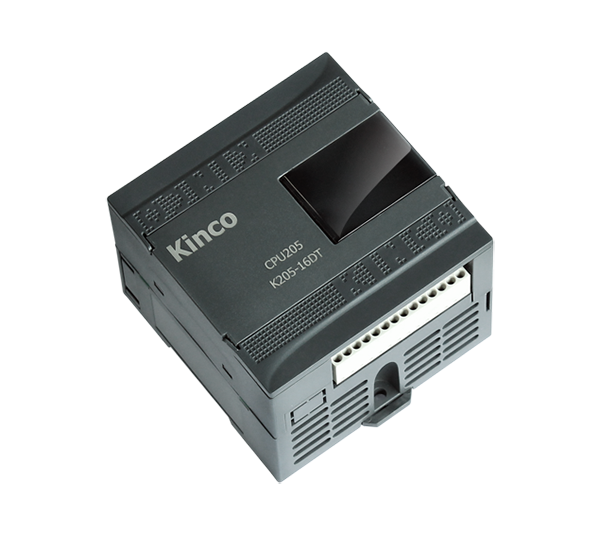

K205-16DT	DC20.4-28.8V power supply, DI 6DC24V, DIO 4DC24V, DO 6DC24V, USB2.0 program interface, 2RS485, no expansion.
K205-16DR	DC20.4-28.8V power supply, DI 6DC24V, DIO 4DC24V, DO 6Relay, USB2.0 program interface, 2RS485, no expansion.
K205EX-22DT	DC20.4-28.8V power supply, DI 8DC24V, DIO 6DC24V, DO 8DC24V, USB2.0 program interface, 2RS485, no expansion.
K205EA-18DT	DC20.4-28.8V power supply, DI 8DC24V, DO 8DC24V, AI 1IV, AO 1IV, USB2.0 program interface, 2*RS485, no expansion.

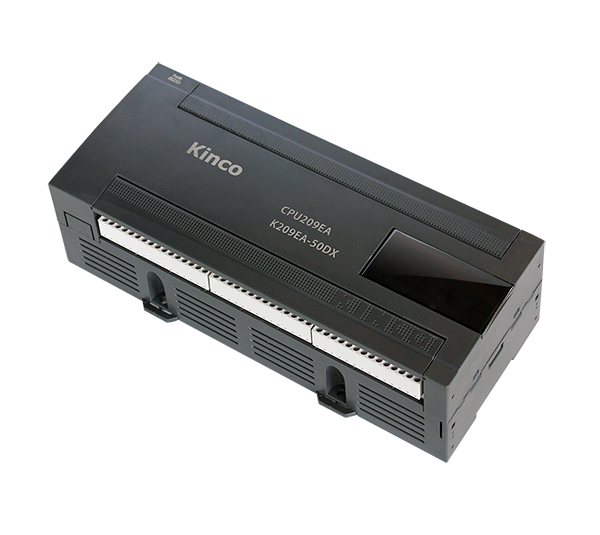

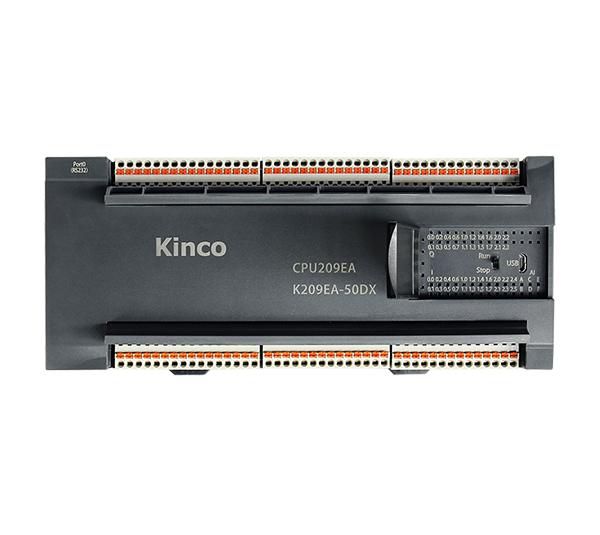

K209EA-50DX	DC20.4-28.8V power supply, DI 22DC24V, DO 8Transistor+12Relay, AI 6IV, AO 2IV, USB2.0 program interface, 3serial port (1RS232, 2RS485), no expansion.
K209M-56DT	DC20.4-28V power supply DI 3224VDC ,DO 24DC24V,2RS485,2CANbus interface. USB2.0 program interface , no expansion.

Note: To know more about the product Click Here or Download pdf file.
