EE75 Air Flow Sensor for High-Temperature Industrial Processes

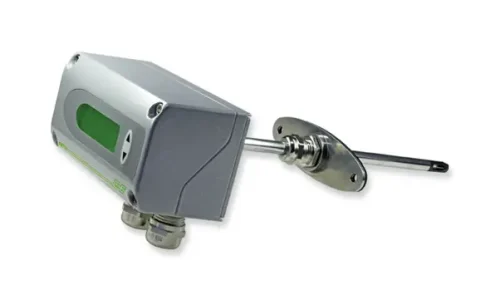

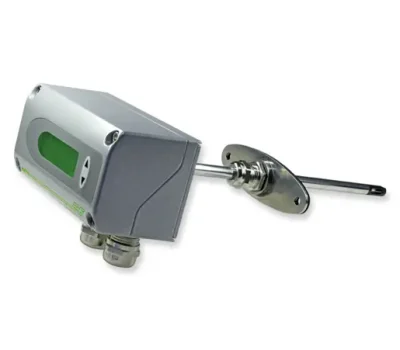

The Nuicon EE75 Air Flow Sensor is a robust industrial transmitter designed for harsh environments. Withstanding temperatures up to 120°C and pressure ratings of up to 10 bar (T26 version), it delivers precise velocity data in process control. Whether monitoring industrial dryers or compressed air lines, the EE75 Air Flow Sensor ensures your process stays safe and efficient.

Get A Quote

+91 96637 55426

What is the CO2 Sensor For?

Auto Body & Repair Shops

Quickly verify paint thickness for used car assessments, repairs, and quality checks.

Contractors & Fabricators

Ensure coating specifications are met on structural steel, railings, and metal fixtures.

Quality Control Inspectors

Perform fast pass/fail checks on production lines and incoming parts.

Painters & Applicators

Confirm coating thickness during application to prevent costly over- or under-application.

Why Buy from Nuicon?

Industrial Expertise

We configure sensors specifically for high-temp or high-pressure zones.

Robust Stock

Industrial-grade units available for immediate plant maintenance.

Traceable Calibration

Certificates provided to meet ISO energy audit requirements.

Technical Specifications

Measurement Range: 0–2 / 0–10 / 0–40 m/s (selectable)
Temperature Range: -40…+120 °C (probe); enclosure limits vary
Accuracy: ±0.5 °C (temperature); air velocity ±0.03…0.2 m/s +1% of measured value depending on range
Output Signal: 0–10 V or 4–20 mA (configurable)

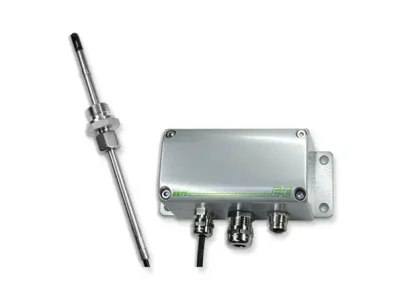

Pressure Rating: Up to 10 bar (T26 pressure-tight remote probe only)
Probe Material: Stainless steel probe, PBT probe head

Key Features

High-Heat Performance: Unlike standard probes, the EE75 Air Flow Sensor operates reliably in process air up to 120°C, ideal for drying chambers.
Wide Velocity Range: Measures air speeds from 0.06 m/s up to 40 m/s, covering gentle flows to high-speed intake ducts.
Pressure Tight: The sturdy sensing probe withstands operational pressures up to 10 bar, making it perfect for compressed air monitoring.
Volume Calculation: Automatically calculates volumetric flow (m³/h) based on the pipe diameter, simplifying your control logic.

Real-World Applications

Industrial Drying Systems: Monitors hot air velocity in food, paper, and ceramic drying processes.
Compressed Air Distribution: Measures airflow in high-pressure pipelines (up to 10 bar with T26 probe).
Process Ventilation Systems: Controls intake and exhaust airflow in chemical and process plants.
High-Temperature Industrial Ducting: Reliable airflow monitoring in furnaces, kilns, and other heat-intensive processes.
Energy Management Programs: Provides accurate airflow and volume data for process optimization when integrated with control systems or building management systems

FAQS CO2 Sensor

Can the EE75 replace the EE650?

Only under specific conditions. The EE75 is ideal for high-temperature (>60 °C) or pressure applications. For standard AC ducts and room ventilation, the EE650 is more cost-effective. The EE75 is designed for industrial use.

Is the EE75 suitable for compressed air?

Yes, with the T26 pressure-tight probe, it can measure airflow in pipelines up to 10 bar, making it suitable for industrial compressed air monitoring.
